Eide FPC Overspeed Safety Brake
Industrial Clutch Parts Ltd. supplies a complete range of Eide FPC overspeed safety brakes. Available in all standard sizes, suitable for many types of safety applications.
FPC safety brakes prevent accidental falls in wind turbine lifts/elevators. Many rack and pinion hoist manufacturers trust the Eide FPC safety device for their systems. The design is compact and robust and operation is completely mechanical.
FPC Certification:
- Complies with: EN 12158 EN12159, EN 1495
- Complies with: 95/16/CE
- Complies with: ATEX 94/9/CE directives

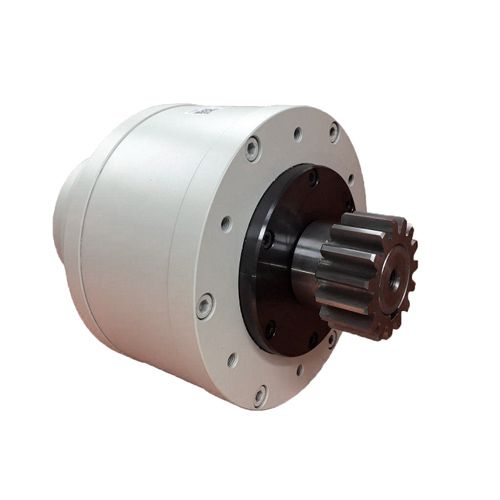

Eide FPC Overspeed Safety Brake
Eide FPC overspeed safety brake is a mechanical unit used to protect against accidental free-fall in rack and pinion wind turbine lift mechanisms. It is commonly used as a pinion safety brake on a rack and pinion lifting devices.
It is also known as a safety device that controls overspeed, an automatic centrifugal brake device, and a pinion safety device or pinion device.
| Size | FPC-500 | FPC-1000 | FPC-3500 | FPC-6000 |
| Locking Speed | 180 - 400 rpm | 160 - 400 rpm | 150 - 300 rpm | 150 - 300 rpm |
| Couple | 150 - 500 Nm | 350 - 1250 Nm | 900 - 3800 Nm | 2000 - 7000 Nm |
| Applications | Wind turbine lifts, elevators |
|---|---|
| Actuation Method | Manual |
| Brake Type | Centrifugal |
