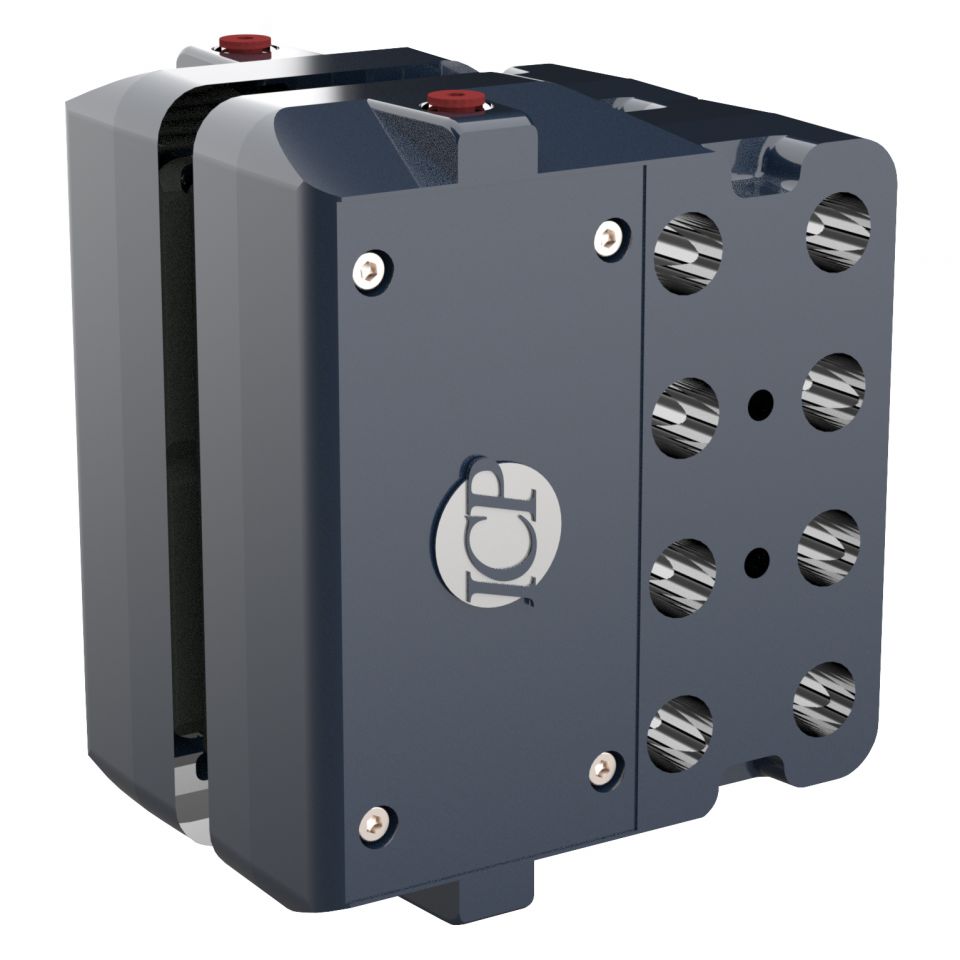

Rotor Brake HAB-4-90 RS
ICP Wind manufactures an extensive range of rotor brakes suitable for almost any wind turbine model on the market.
HAB-4-90 RS is a hydraulically applied, spring released, rotor brake. The pad release springs store energy when pressure is lost, driving the brake piston and engaging the disc rotor for positive stopping.
- Braking Force: 162,560 N
- Actuation Method: Hydraulic applied, spring released
- Friction: Organic linings
ICP Rotor Brake HAB-4-90 RS
ICP Wind manufactures reliable and cost-effective wind turbine brakes. Rotor brakes - often referred to as high-speed brakes - are designed to safely stop a wind turbine rotor in an emergency or parking operations.
HAB-4-90 RS is a hydraulically applied, spring released caliper brake with pad release springs. The pad release springs store energy when pressure is lost, driving the brake piston and engaging the disc rotor for positive stopping.
| Actuation Method | Hydraulic |
|---|---|
| Wind Turbine Brand | Acciona, CWEL, Envision, Gamesa, GE, Loher, NEG Micon, NEPC, Nordex, Nordtank, Siemens, Suzlon, Senvion, VEM, Vestas, Wincon, Winergy |
| Braking Force | 162,560 N |
| Friction Coefficient | 0.4 |
| Pad Area | 19589 mm² |
| Piston Area | 6360 mm² |
| Operating Pressure | 16 Mpa |
| Compares With | Yes |
